Layout Selection

Layouts are selected using the layout configuration option for each workspace and can be pre-configured as flipped on specific axis .

Certain layouts have options which adjust how they arrange containers on a workspace.

The layout for the focused workspace switched in realtime using the komorebic change-layout command.

The layout for the focused workspace can be cycled in realtime using the komorebic cycle-layout command.

The layout for the a workspace identified by monitor and workspace index can be set in realtime using the komorebic workspace-layout command.

The layout for the a workspace by name can be set in realtime using the komorebic named-workspace-layout command.

Layout Rules

Layout rules are used to automatically change the layout on a specified workspace when a threshold of window containers is met.

{
  "monitors": [
    {
      "workspaces": [
        {
          "name": "workspace with layout rules",
          "layout_rules": {
            "1": "BSP",
            "4": "UltrawideVerticalStack",
            "7": "Grid"
          }
        }
      ]
    }
  ]
}

In the above example

• When there are between 1 and 3 window containers on the workspace, the BSP layout will be applied
• When there are between 4 and 6 window containers on the workspace, the UltrawideVerticalStack layout will be applied
• When there are between 7 or more window containers on the workspace, the Grid layout will be applied

Layout rules can be cleared from a workspace by monitor and workspace index using the komorebic clear-workspace-layout-rules command, and by workspace name using the clear-named-workspace-layout-rules command.

Layout Ratios

Layout options can be used to define custom split ratios for various layouts.

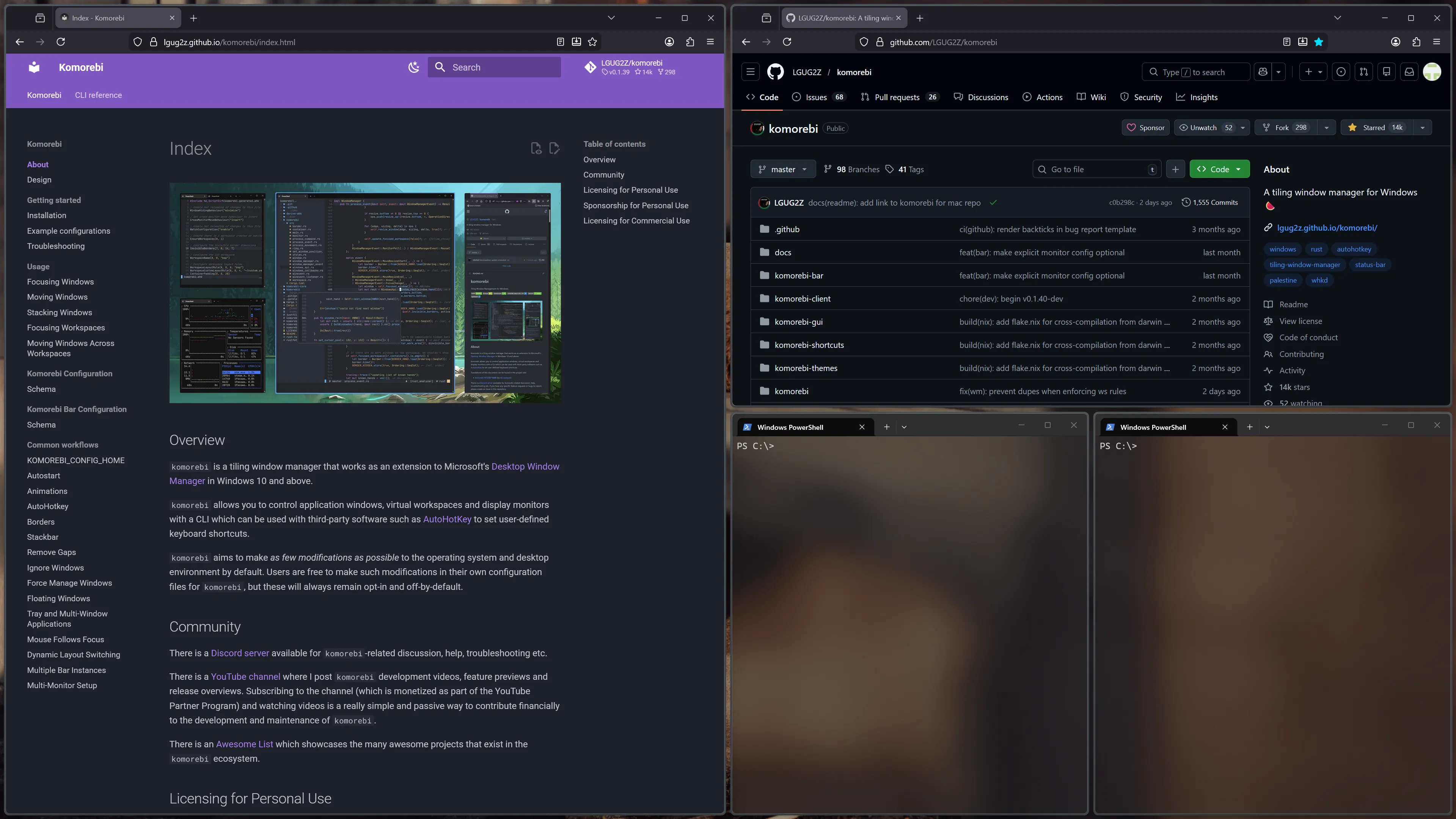

BSP layout with default 50/50 splits

BSP layout with column_ratios: [0.7] and row_ratios: [0.6]:

Example Configuration

{
  "monitors": [
    {
      "workspaces": [
        {
          "name": "main",
          "layout_options": {
            "column_ratios": [0.3, 0.4],
            "row_ratios": [0.4, 0.3]
          }
        }
      ]
    }
  ]
}

You can specify up to 5 ratio values (defined by MAX_RATIOS constant). Each value should be between 0.1 and 0.9 (defined by MIN_RATIO and MAX_RATIO constants). Values outside this range are automatically clamped. Columns or rows without a specified ratio will share the remaining space equally.

Usage by Layout

Layout	column_ratios	row_ratios
Columns	Width of each column	-
Rows	-	Height of each row
Grid	Width of each column (rows are equal height)	-
BSP	[0] as horizontal split ratio	[0] as vertical split ratio
VerticalStack	[0] as primary column width	Stack row heights
RightMainVerticalStack	[0] as primary column width	Stack row heights
HorizontalStack	Stack column widths	[0] as primary row height
UltrawideVerticalStack	[0] center, [1] left column	Tertiary stack row heights

Examples

Columns Layout with Custom Widths

Create 3 columns with 30%, 40%, and 30% widths:

{
  "layout_options": {
    "column_ratios": [0.3, 0.4]
  }
}

Note

The third column automatically gets the remaining 30%

Rows Layout with Custom Heights

Create 3 rows with 20%, 50%, and 30% heights:

{
  "layout_options": {
    "row_ratios": [0.2, 0.5]
  }
}

Note

The third column automatically gets the remaining 30%

Grid Layout with Custom Column Widths

Grid with custom column widths (rows within each column are always equal height):

{
  "layout_options": {
    "column_ratios": [0.4, 0.6]
  }
}

Note

The Grid layout only supports column_ratios. Rows within each column are always divided equally because the number of rows per column varies dynamically based on window count

VerticalStack with Custom Ratios

Primary column takes 60% width, and the stack rows are split 30%/70%:

{
  "layout_options": {
    "column_ratios": [0.6],
    "row_ratios": [0.3]
  }
}

Note

The second row automatically gets the remaining 70%

HorizontalStack with Custom Ratios

Primary row takes 70% height, and the stack columns are split 40%/60%:

{
  "layout_options": {
    "row_ratios": [0.7],
    "column_ratios": [0.4]
  }
}

Note

The second column automatically gets the remaining 60%

UltrawideVerticalStack with Custom Ratios

Center column at 50%, left column at 25% (remaining 25% goes to tertiary stack), with tertiary rows split 40%/60%:

{
  "layout_options": {
    "column_ratios": [0.5, 0.25],
    "row_ratios": [0.4]
  }
}

Note

The second row automatically gets the remaining 60%

BSP Layout with Custom Split Ratios

Use separate ratios for horizontal (left/right) and vertical (top/bottom) splits:

{
  "layout_options": {
    "column_ratios": [0.6],
    "row_ratios": [0.3]
  }
}

• column_ratios[0]: Controls all horizontal splits (left window gets 60%, right gets 40%)
• row_ratios[0]: Controls all vertical splits (top window gets 30%, bottom gets 70%)

Note

BSP only uses the first value ([0]) from each ratio array. This single ratio is applied consistently to all splits of that type throughout the layout. Additional values in the arrays are ignored

Progressive Ratio Behavior

Ratios are applied progressively as windows are added. For example, with row_ratios: [0.3, 0.5] in a VerticalStack:

Windows in Stack	Row Heights
1	100%
2	30%, 70% (remainder)
3	30%, 50%, 20% (remainder)
4	30%, 50%, 10%, 10% (remainder split equally)
5	30%, 50%, 6.67%, 6.67%, 6.67%

Automatic Ratio Truncation

When ratios sum to 100% (or more), they are automatically truncated at config load time.

For example, if you configure column_ratios: [0.4, 0.3, 0.3] (sums to 100%), the last ratio (0.3) is automatically removed, resulting in effectively [0.4, 0.3]. This ensures there’s always remaining space for the last window.

Configured Ratios	Effective Ratios	Reason
[0.3, 0.4]	[0.3, 0.4]	Sum is 0.7, below 1.0
[0.4, 0.3, 0.3]	[0.4, 0.3]	Sum would be 1.0, last ratio truncated
[0.5, 0.5]	[0.5]	Sum would be 1.0, last ratio truncated
[0.6, 0.5]	[0.6]	Sum would exceed 1.0, last ratio truncated

This ensures the layout always fills 100% of the available space and new windows are never placed outside the visible area.

Notes

• Ratios are clamped between 0.1 and 0.9 (prevents zero-sized windows and ensures space for other windows)
• Default ratio is 0.5 (50%) when not specified, except for UltrawideVerticalStack secondary column which defaults to 0.25 (25%)
• Ratios are applied progressively - a ratio is only used when there are more windows to place after the current one
• The last window always takes the remaining space, regardless of defined ratios
• Ratios that would sum to 100% or more are automatically truncated at config load time to ensure there’s always space for additional windows
• Unspecified ratios default to sharing the remaining space equally
• You only need to specify the ratios you want to customize; trailing values can be omitted
